产品描述

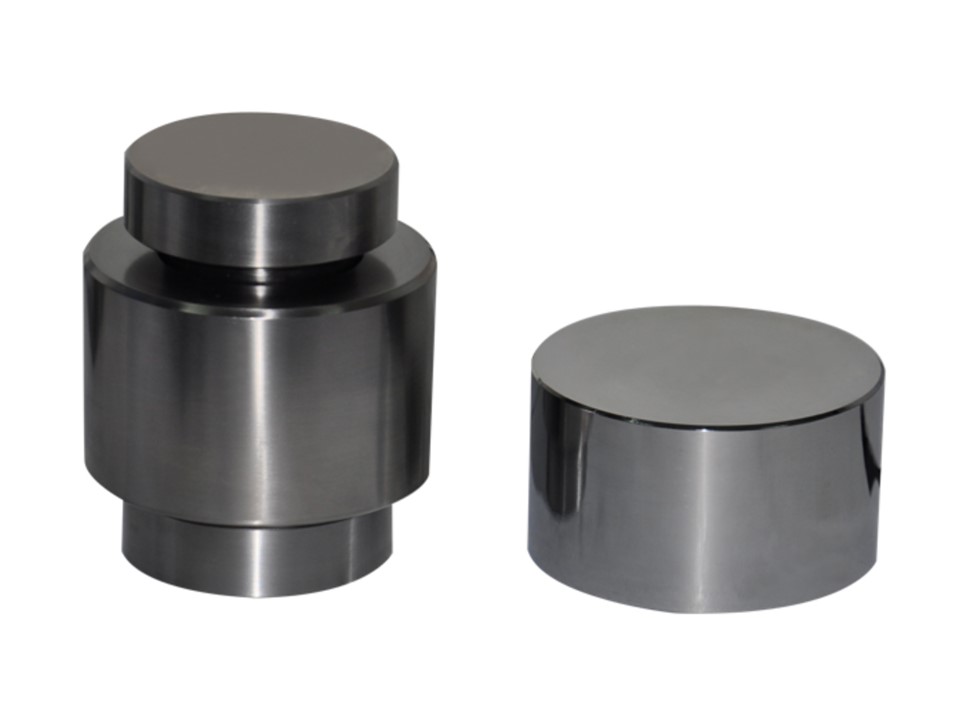

this PMY-E serial press die is a round die which made by alloy tool steel Cr12MoV, it's indenter hardness is HRC60-HRC62. the round pellet die has several sample size for choose: Φ50mm,Φ60mm,Φ70mm.
技术参数
| Model No. | PMY-E |
| Die Material | Cr12MoV |
| Indenter Hardness | HRC60-HRC62 |
| Sample Size | Φ50mm,Φ60mm,Φ70mm |
| Cavity Depth | 55mm,60mm,65mm |

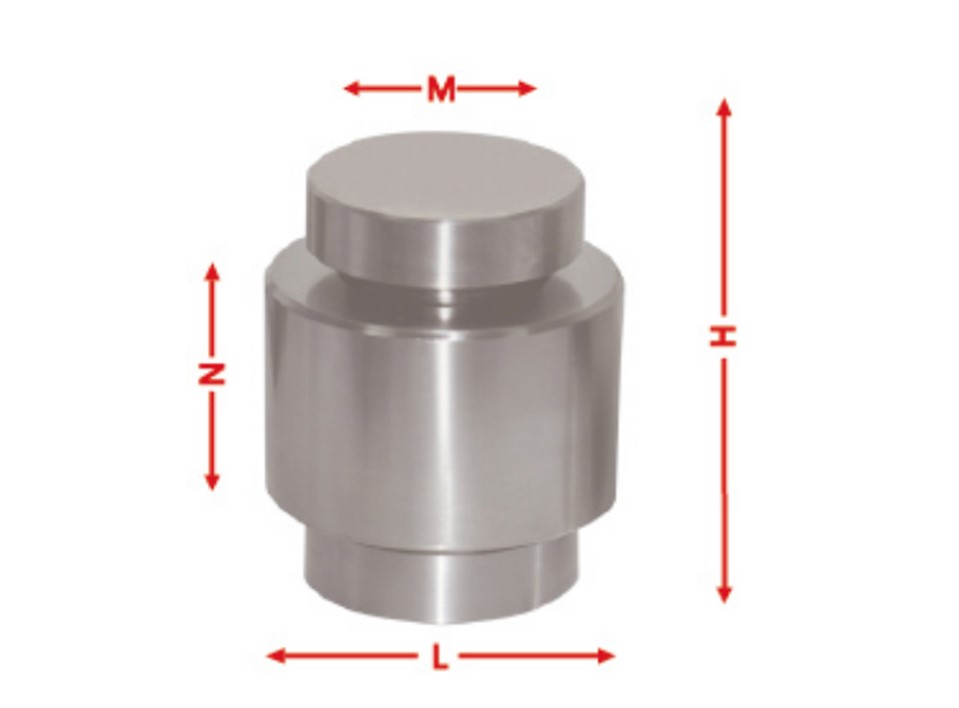

| Dimension | Φ88*150mm,Φ98*180mm,Φ108*180mm |
| Weight | 5.1kg,7.3kg,9kg |
