产品描述

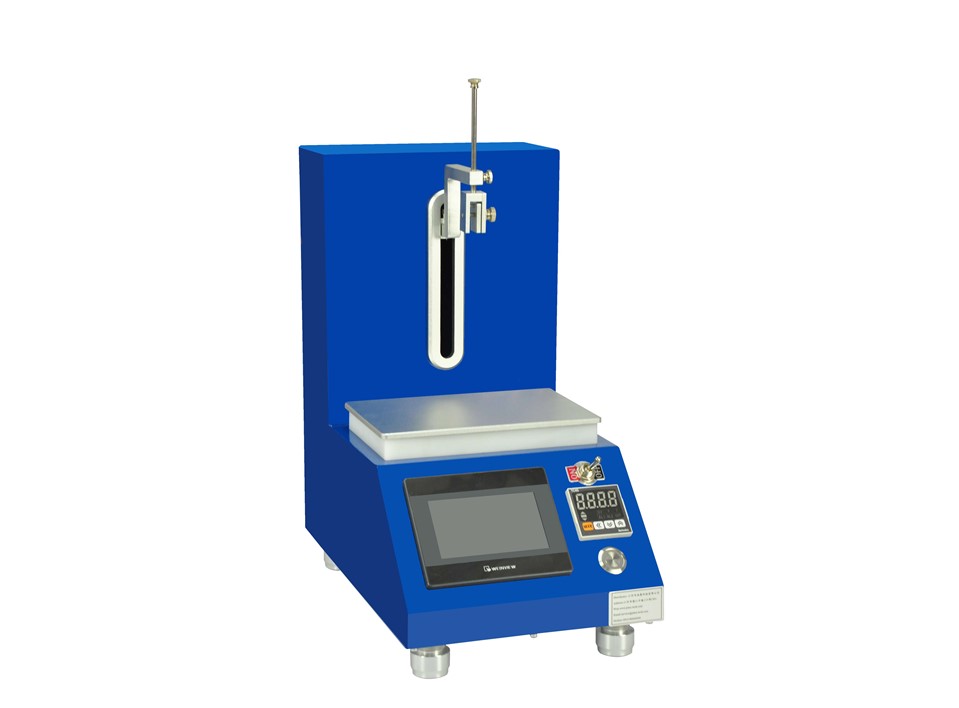

DP100-H is a compact dipping coater with heating plate. Maxi heating temperature can reach 120 degree. The dipping speed and coating time is controlled by a LCD programmable touch panel.Temperature accuracy can upto 0.5 degree.
技术参数
Model No. | DP100-H |
Dipping speed | 0.1~600mm/min |
Max distance | 100mm |
Displacement accuracy | +/- 0.1mm |
Rated linear thrust | > 50N |
Dipping time | 0~9999.9s |
Repeat dipping time | 0~9999.9s |
Times Repeat | 1~999 |
Max wafer dimension | 100mm |
Max temperature | rm~120 degree |
Gross weight | 7Kg |
Power supply | AC110~220v 50Hz |
Outer Dimension | 363*227*416mm |
