产品描述
2.Matrial:Anodic Oxidation Aluminium Shell,

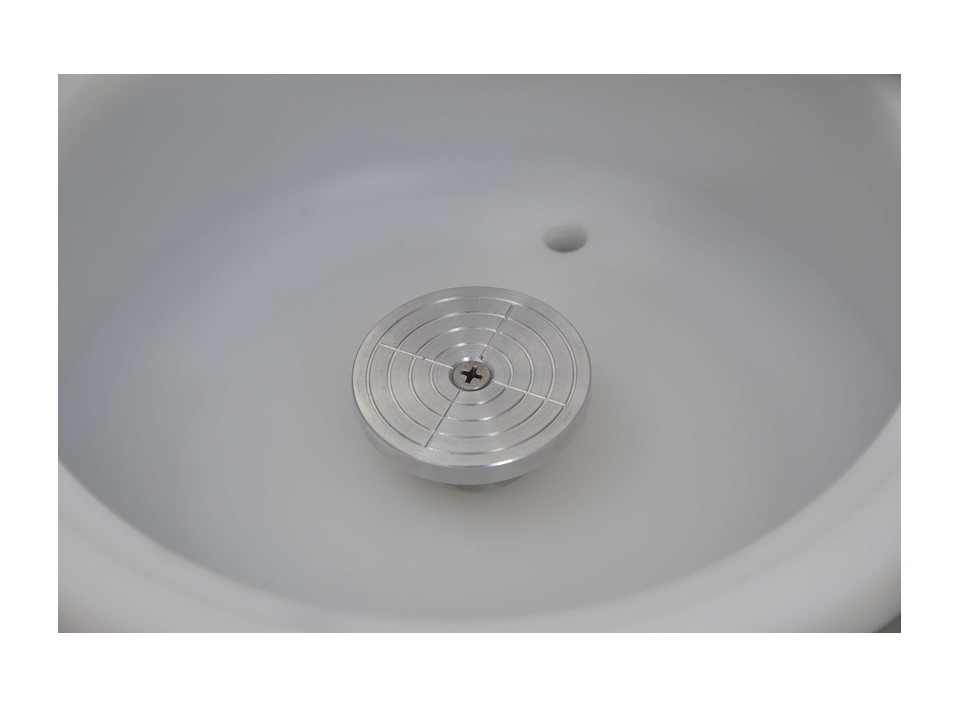

3.With three pieces aluminium vacuum chuck: 0D8mm,15mm,55mm

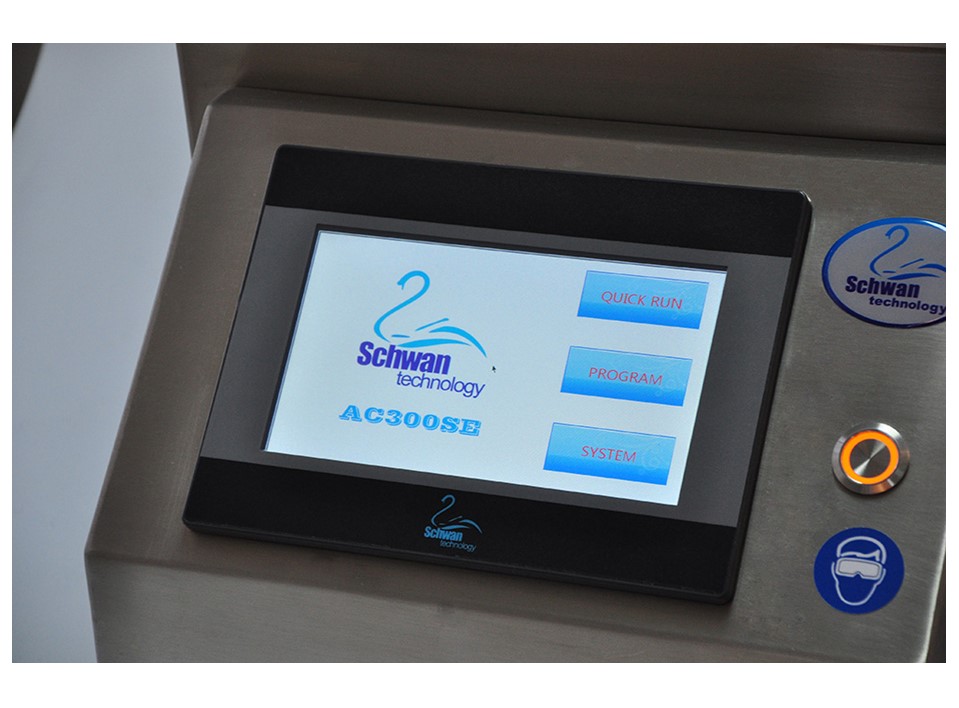

4.7"LCD Panel with Enghlish Instruction Manual Book5.Oiless vacuum pump with low noise
6.Servo motor, more stability
技术参数
| Model No. | AC300 |
| Maximum wafer sample | 12 inch (300mm) |
| Chamber material | HDPE |
| Vacuum Chuck | 3 pieces standard vacuum chuck Size: O.D8mm, 15mm,55mm for immediately using ***Customized vacuum chuck is availiable*** |
| Spin Speed | 100~5000RPM |
| Acceleration adjustable range | 0~10000rpm/s |
| Each step max coating time | 3000s |
| Servo motor power | 200w |
| Spin Control | Programmable control,100programmable with each 100steps can restore |
| Spin Resolution | 1 rpm |
| Power supply | AC110-230V, adjustable |
| Dimension | 613*463*306mm |
